ISA Card-Edge Connector
The ISA card-edge connector is used to connect peripheral cards to the
motherboard of PC compatible computers. The "ISA Connector" is actually two
card-edge connectors one 62-pin, one 36-pin. The 36-pin connector (designated
as having pins C1-D18) was added for 16-bit I/O at the time the IBM PC/AT was
developed.

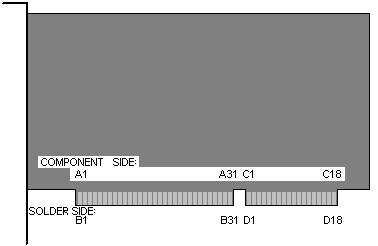

Here's a look at an ISA card, showing the connector.
Here's what the ISA motherboard connector looks like:
Pin |
Name |
Direction |
Description |
A1 |
/I/O CH CK |
Card-to-PC |
I/O channel check; active low=parity error |
A2 |
D7 |
Bidirectional |
Data bit 7 |
A3 |
D6 |
Bidirectional |
Data bit 6 |
A4 |
D5 |
Bidirectional |
Data bit 5 |
A5 |
D4 |
Bidirectional |
Data bit 4 |
A6 |
D3 |
Bidirectional |
Data bit 3 |
A7 |
D2 |
Bidirectional |
Data bit 2 |
A8 |
D1 |
Bidirectional |
Data bit 1 |
A9 |
D0 |
Bidirectional |
Data bit 0 |
A10 |
I/O CH RDY |
Card-to-PC |
I/O Channel ready, pulled low to lengthen memory cycles |
A11 |
AEN |
PC-to-Card |
Address enable; active high when DMA controls bus |
A12 |
A19 |
PC-to-Card |
Address bit 19 |
A13 |
A18 |
PC-to-Card |
Address bit 18 |
A14 |
A17 |
PC-to-Card |
Address bit 17 |
A15 |
A16 |
PC-to-Card |
Address bit 16 |
A16 |
A15 |
PC-to-Card |
Address bit 15 |
A17 |
A14 |
PC-to-Card |
Address bit 14 |
A18 |
A13 |
PC-to-Card |
Address bit 13 |
A19 |
A12 |
PC-to-Card |
Address bit 12 |
A20 |
A11 |
PC-to-Card |
Address bit 11 |
A21 |
A10 |
PC-to-Card |
Address bit 10 |
A22 |
A9 |
PC-to-Card |
Address bit 9 |
A23 |
A8 |
PC-to-Card |
Address bit 8 |
A24 |
A7 |
PC-to-Card |
Address bit 7 |
A25 |
A6 |
PC-to-Card |
Address bit 6 |
A26 |
A5 |
PC-to-Card |
Address bit 5 |
A27 |
A4 |
PC-to-Card |
Address bit 4 |
A28 |
A3 |
PC-to-Card |
Address bit 3 |
A29 |
A2 |
PC-to-Card |
Address bit 2 |
A30 |
A1 |
PC-to-Card |
Address bit 1 |
A31 |
A0 |
PC-to-Card |
Address bit 0 |
B1 |
GND |
N/A |
Ground |
B2 |
RESET |
PC-to-Card |
Active high to reset or initialize system logic |
B3 |
+5V |
|
+5 VDC |
B4 |
IRQ2 |
Card-to-PC |
Interrupt Request 2 |
B5 |
-5VDC |
PC-to-Card |
-5 VDC |
B6 |
DRQ2 |
Card-to-PC |
DMA Request 2 |
B7 |
-12VDC |
PC-to-Card |
-12 VDC |
B8 |
/NOWS |
Card-to-PC |
No WaitState |
B9 |
+12VDC |
PC-to-Card |
+12 VDC |
B10 |
GND |
N/A |
Ground |
B11 |
/SMEMW |
PC-to-Card |
System Memory Write |
B12 |
/SMEMR |
PC-to-Card |
System Memory Read |
B13 |
/IOW |
PC-to-Card |
I/O Write |
B14 |
/IOR |
PC-to-Card |
I/O Read |
B15 |
/DACK3 |
PC-to-Card |
DMA Acknowledge 3 |
B16 |
DRQ3 |
Card-to-PC |
DMA Request 3 |
B17 |
/DACK1 |
PC-to-Card |
DMA Acknowledge 1 |
B18 |
DRQ1 |
Card-to-PC |
DMA Request 1 |
B19 |
/REFRESH |
Bidirectional |
Refresh |
B20 |
CLOCK |
PC-to-Card |
System Clock (67 ns, 8-8.33 MHz, 50% duty cycle) |
B21 |
IRQ7 |
Card-to-PC |
Interrupt Request 7 |
B22 |
IRQ6 |
Card-to-PC |
Interrupt Request 6 |
B23 |
IRQ5 |
Card-to-PC |
Interrupt Request 5 |
B24 |
IRQ4 |
Card-to-PC |
Interrupt Request 4 |
B25 |
IRQ3 |
Card-to-PC |
Interrupt Request 3 |
B26 |
/DACK2 |
PC-to-Card |
DMA Acknowledge 2 |
B27 |
T/C |
PC-to-Card |
Terminal count; pulses high when DMA term. count reached |
B28 |
ALE |
PC-to-Card |
Address Latch Enable |
B29 |
+5V |
PC-to-Card |
+5 VDC |
B30 |
OSC |
PC-to-Card |
High-speed Clock (70 ns, 14.31818 MHz, 50% duty cycle) |
B31 |
GND |
N/A |
Ground |
|
|
|
|
C1 |
SBHE |
Bidirectional |
System bus high enable (data available on SD8-15) |
C2 |
LA23 |
Bidirectional |
Address bit 23 |
C3 |
LA22 |
Bidirectional |
Address bit 22 |
C4 |
LA21 |
Bidirectional |
Address bit 21 |
C5 |
LA20 |
Bidirectional |
Address bit 20 |
C6 |
LA18 |
Bidirectional |
Address bit 19 |
C7 |
LA17 |
Bidirectional |
Address bit 18 |
C8 |
LA16 |
Bidirectional |
Address bit 17 |
C9 |
/MEMR |
Bidirectional |
Memory Read (Active on all memory read cycles) |
C10 |
/MEMW |
Bidirectional |
Memory Write (Active on all memory write cycles) |
C11 |
SD08 |
Bidirectional |
Data bit 8 |
C12 |
SD09 |
Bidirectional |
Data bit 9 |
C13 |
SD10 |
Bidirectional |
Data bit 10 |
C14 |
SD11 |
Bidirectional |
Data bit 11 |
C15 |
SD12 |
Bidirectional |
Data bit 12 |
C16 |
SD13 |
Bidirectional |
Data bit 13 |
C17 |
SD14 |
Bidirectional |
Data bit 14 |
C18 |
SD15 |
Bidirectional |
Data bit 15 |
D1 |
/MEMCS16 |
Card-to-PC |
Memory 16-bit chip select (1 wait, 16-bit memory cycle) |
D2 |
/IOCS16 |
Card-to-PC |
I/O 16-bit chip select (1 wait, 16-bit I/O cycle) |
D3 |
IRQ10 |
Card-to-PC |
Interrupt Request 10 |
D4 |
IRQ11 |
Card-to-PC |
Interrupt Request 11 |
D5 |
IRQ12 |
Card-to-PC |
Interrupt Request 12 |
D6 |
IRQ15 |
Card-to-PC |
Interrupt Request 15 |
D7 |
IRQ14 |
Card-to-PC |
Interrupt Request 14 |
D8 |
/DACK0 |
PC-to-Card |
DMA Acknowledge 0 |
D9 |
DRQ0 |
Card-to-PC |
DMA Request 0 |
D10 |
/DACK5 |
PC-to-Card |
DMA Acknowledge 5 |
D11 |
DRQ5 |
Card-to-PC |
DMA Request 5 |
D12 |
/DACK6 |
PC-to-Card |
DMA Acknowledge 6 |
D13 |
DRQ6 |
Card-to-PC |
DMA Request 6 |
D14 |
/DACK7 |
PC-to-Card |
DMA Acknowledge 7 |
D15 |
DRQ7 |
Card-to-PC |
DMA Request 7 |
D16 |
+5 V |
PC-to-Card |
|
D17 |
/MASTER |
Card-to-PC |
Used with DRQ to gain control of system |
D18 |
GND |
N/A |
Ground |
Note: B8 was /CARD SLCDTD on the XT ("card selected", activated by cards in
XT's slot J8)
|
